Analog Input Module – 4 Current/Voltage Inputs
- Analog input expansion module with 4 current/voltage input channels, designed for use with Maple Systems modular PLC CPU units
- Supports both current (0–20 mA, 4–20 mA) and voltage (0–5 V, 1–5 V, 0–10 V, -10–10 V) input signal types
- High measurement accuracy of ±0.03% full scale with selectable 14-bit or 16-bit resolution
- Fast conversion speed of less than 0.5 ms per channel with photocoupler group isolation
- CE and UL certified
Product Overview

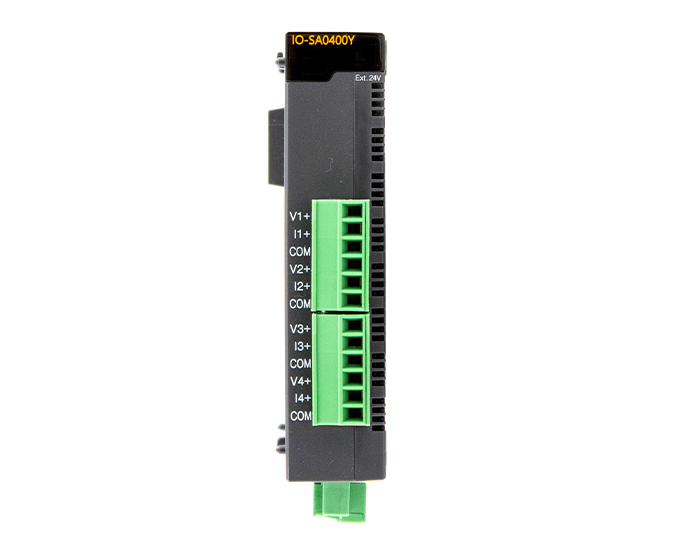

The IO-SA0400Y is a 4-channel analog input expansion module designed to extend the capabilities of Maple Systems modular PLC systems. It accepts both current and voltage signal types, making it well-suited for interfacing with a wide range of industrial sensors and transducers. With a conversion speed of under 0.5 ms and selectable resolution of 14-bit or 16-bit, the module delivers fast and precise analog measurements. Connections are made via a screw-based terminal connector, and the module is powered by an external 24 VDC supply. It is configured and programmed through MapleLogic, Maple Systems’ free PLC software.
Key Features
- 4 analog input channels supporting current and voltage signal types
- Voltage input ranges: 0–5 V, 1–5 V, 0–10 V, -10–10 V
- Current input ranges: 0–20 mA, 4–20 mA
- Selectable resolution: 14-bit (0–16,000) or 16-bit (0–64,000)
- Measurement accuracy: ±0.03% of full scale
- Conversion speed: less than 0.5 ms
- Photocoupler group isolation for signal integrity
- Screw-based terminal connector for secure field wiring
- External power supply: 24 VDC
- Internal current consumption: 30 mA at 3.3 VDC
- External current consumption: 35 mA at 24 VDC
- Compact form factor: 90 x 20 x 63 mm
- Programmed via MapleLogic — free, full-featured PLC configuration software
- CE and UL certified
Product Specifications
Analog Input
- Number of Analog Input Points: 4
- Voltage Input Ranges: 0–5 V, 1–5 V, 0–10 V, -10–10 V
- Current Input Ranges: 0–20 mA, 4–20 mA
- Conversion Speed: < 0.5 ms
- Insulation Method: Photocoupler (group isolation)
- Resolution: 14-bit (0–16,000) / 16-bit (0–64,000)
- Accuracy: ±0.03% (Full Scale)
- Power Supply: External 24 VDC
- Internal Current Consumption: 30 mA at 3.3 VDC
- External Current Consumption: 35 mA at 24 VDC
Mechanical
- Terminal Connector Type: Screw-based Connector
- Dimensions (W x H x D): 90 x 20 x 63 mm (3.5 x 0.8 x 2.5 in)
- Weight: 87 g (0.19 lb)
- Shock Rating: 15G
- Vibration: 0.5G continuous / 1G discontinuous
- Square Wave Impulse Noise: ±2 kV
- ESD Immunity: ±4 kV contact discharges / ±8 kV air discharges
- Radiated Electromagnetic Immunity: 80–1000 MHz, 10 V/m
- Surge Transient Immunity: 2 kV (CPU and Power) / 2 kV Digital I/O (VAC) / 1 kV Digital I/O (VDC) / 1 kV Communication
Environmental
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature: -25 to 80°C (-13 to 176°F)
- Operating/Storage Relative Humidity: 5 to 95% non-condensing
Certifications
- CE: Yes
- UL: Yes
- RoHS: Yes (Declaration of Conformity available)
Typical Applications
- Analog sensor signal acquisition (pressure, flow, level, temperature)
- Process monitoring and control using current loop (4–20 mA) transmitters
- Voltage-based transducer input for industrial automation systems
- PID loop feedback signal input for closed-loop process control
- Building automation and HVAC analog signal monitoring
- Food and beverage processing equipment sensor integration
- Water and wastewater treatment analog instrumentation
