I/O Module | 12 Bi-Directional Digital Inputs, 10 Digital Outputs, 2 Analog Inputs, 1 Analog Output

I/O Module | 12 Bi-Directional Digital Inputs, 10 Digital Outputs, 2 Analog Inputs, 1 Analog Output

  • Engineered to expand and enhance the I/O capabilities of Allen-Bradley HMI+PLC integrated control systems
  • Delivers 12 bi-directional digital inputs, 10 digital outputs, 2 analog inputs, and 1 analog output in a single compact module
  • The addition of an analog output channel makes this model ideal for applications requiring active signal transmission to actuators, drives, or process controllers
  • Flexible modular design — mix and match with other I/O expansion modules to match specific project demands
  • Rated for Class I, Division 2 hazardous environments
  • Certified under CE, UL, and RoHS compliance standards
  • Suited for industrial automation, OEM machine integration, and process control applications
Category
Ask For Quotation

Overview

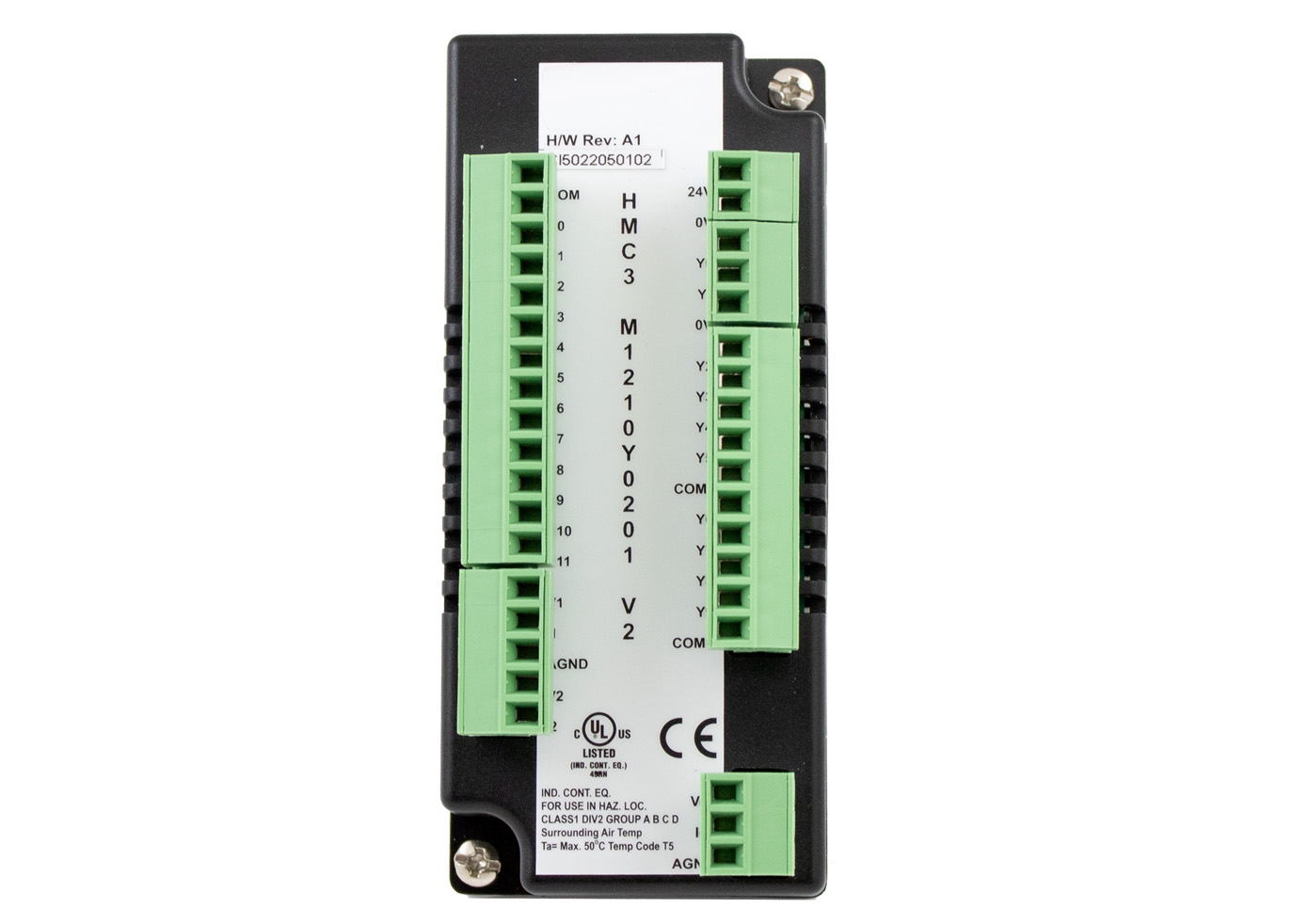

  • The Allen-Bradley AB-M1210Y0201-V2 is a versatile I/O expansion module designed to scale the capabilities of Rockwell Automation HMI+PLC combo control platforms
  • Compatible with AB2000 and AB4000 series combo units; supports modular configuration with additional I/O modules to meet evolving application requirements
  • Compact DIN-rail mountable enclosure: 48mm (W) x 108mm (H) x 35.7mm (D)

Digital Inputs

  • 12 bi-directional digital inputs compliant with EN 61131-2 Type 1 standard
  • Includes 2 high-speed input (HSC) pairs supporting Quadrature and Standard counter modes at up to 200 kHz max input frequency
  • Nominal input voltage: 24VDC; nominal input current: 5mA typical
  • Input impedance: 4.8 KΩ; response time: 10ms ON / 10ms OFF
  • ON voltage range: 15–30VDC; OFF voltage range: -3 to 5VDC

Digital Outputs

  • 10 digital outputs comprising 8 relay-type outputs and 2 PNP transistor outputs
  • Includes 1 PWM (Pulse Width Modulation) high-speed output supporting Normal, CW/CCW, Pulse/Direction, and Fixed Pulse modes at up to 1 kHz max output frequency
  • Nominal output voltage: 30VDC; nominal output current: 250mA per channel
  • Short circuit protection on all output channels

Analog Inputs

  • 2 analog input channels with 16-bit resolution for precise sensor and signal monitoring
  • Supports multiple input signal types: 0–20mA, 4–20mA, 0–10VDC, 0–5VDC
  • Accuracy: ±0.2% of full scale at 25°C

Analog Output

  • 1 analog output channel with 12-bit resolution for accurate process signal control
  • Supports multiple output signal types: 0–20mA, 4–20mA, 0–10VDC, 0–5VDC
  • Ideal for driving variable-speed drives (VFDs), control valves, proportional actuators, and other analog-controlled field devices
  • Accuracy: ±0.2% of full scale at 25°C

Power Supply

  • Input voltage: 24VDC (±15%), with 12V supply from base unit
  • Optical isolation on all I/O points with high isolation voltage (BV > 1.5 KV) for protection against electrical noise and interference

Environmental Ratings

  • Operating temperature: 0°C to 60°C
  • Storage temperature: -20°C to 85°C
  • Humidity: 10–90% (non-condensing)
  • Class I, Division 2 rated for hazardous location deployment

Certifications & Compliance

  • CE Declaration of Conformity
  • UL Listed
  • RoHS Compliant
  • Class I, Division 2 Hazardous Location Certified

What’s in the Box

  • AB-M1210Y0201-V2 I/O Expansion Module
  • Power connector
  • Screw-type terminal blocks
  • Installation instructions
  • Warranty statement
  • Product flyer

Software

  • Programmable via Rockwell Automation Studio 5000 / RSLogix compatible environment using IEC 61131-3 programming language
  • No additional license or software key required for basic configuration
